第27章【高级篇】索引的设计原则

# 【宋红康 MySQL数据库】【高级篇】索引的设计原则

# 数据准备

在这里插入图片描述

CREATE DATABASE atguigudb1;

USE atguigudb1;

#1.创建学生表和课程表
CREATE TABLE `student_info` (
 `id` INT(11) AUTO_INCREMENT,
 `student_id` INT NOT NULL ,
 `name` VARCHAR(20) DEFAULT NULL,
 `course_id` INT NOT NULL ,
 `class_id` INT(11) DEFAULT NULL,
 `create_time` DATETIME DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
 PRIMARY KEY (`id`)
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

CREATE TABLE `course` (
`id` INT(11) NOT NULL AUTO_INCREMENT,
`course_id` INT NOT NULL ,
`course_name` VARCHAR(40) DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;


#函数1：创建随机产生字符串函数

SELECT @@log_bin_trust_function_creators;

SET GLOBAL log_bin_trust_function_creators = 1;

DELIMITER //
CREATE FUNCTION rand_string(n INT)
	RETURNS VARCHAR(255) #该函数会返回一个字符串
BEGIN
	DECLARE chars_str VARCHAR(100) DEFAULT 'abcdefghijklmnopqrstuvwxyzABCDEFJHIJKLMNOPQRSTUVWXYZ';
	DECLARE return_str VARCHAR(255) DEFAULT '';
	DECLARE i INT DEFAULT 0;
	WHILE i < n DO
       SET return_str =CONCAT(return_str,SUBSTRING(chars_str,FLOOR(1+RAND()*52),1));
       SET i = i + 1;
    END WHILE;
    RETURN return_str;
END //
DELIMITER ;


#函数2：创建随机数函数
DELIMITER //
CREATE FUNCTION rand_num (from_num INT ,to_num INT) RETURNS INT(11)
BEGIN
DECLARE i INT DEFAULT 0;
SET i = FLOOR(from_num +RAND()*(to_num - from_num+1))   ;
RETURN i;
END //
DELIMITER ;


# 存储过程1：创建插入课程表存储过程
DELIMITER //
CREATE PROCEDURE  insert_course( max_num INT )
BEGIN
DECLARE i INT DEFAULT 0;
 SET autocommit = 0;    #设置手动提交事务
 REPEAT  #循环
 SET i = i + 1;  #赋值
 INSERT INTO course (course_id, course_name ) VALUES (rand_num(10000,10100),rand_string(6));
 UNTIL i = max_num
 END REPEAT;
 COMMIT;  #提交事务
END //
DELIMITER ;


# 存储过程2：创建插入学生信息表存储过程
DELIMITER //
CREATE PROCEDURE  insert_stu( max_num INT )
BEGIN
DECLARE i INT DEFAULT 0;
 SET autocommit = 0;    #设置手动提交事务
 REPEAT  #循环
 SET i = i + 1;  #赋值
 INSERT INTO student_info (course_id, class_id ,student_id ,NAME ) VALUES (rand_num(10000,10100),rand_num(10000,10200),rand_num(1,200000),rand_string(6));
 UNTIL i = max_num
 END REPEAT;
 COMMIT;  #提交事务
END //
DELIMITER ;

#调用存储过程：
CALL insert_course(100);

SELECT COUNT(*) FROM course;

CALL insert_stu(1000000);

SELECT COUNT(*) FROM student_info;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95

在这里插入图片描述

# 哪些情况适合创建索引

# 字段的数值有唯一性的限制

在这里插入图片描述

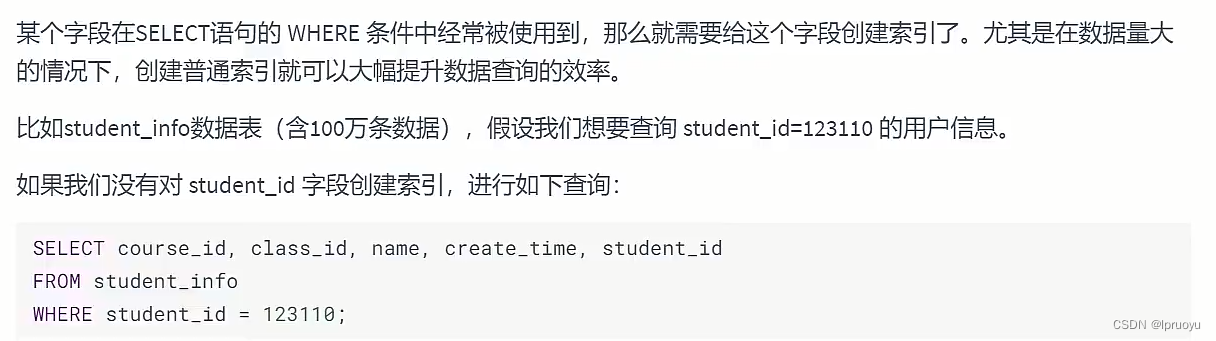

# 频繁作为 WHERE 查询条件的字段

在这里插入图片描述

#查看当前stduent_info表中的索引
SHOW INDEX FROM student_info;
#student_id字段上没有索引的：
SELECT course_id, class_id, NAME, create_time, student_id
FROM student_info
WHERE student_id = 123110; #276ms
#给student_id字段添加索引
ALTER TABLE student_info
ADD INDEX idx_sid(student_id);
#student_id字段上有索引的：
SELECT course_id, class_id, NAME, create_time, student_id
FROM student_info
WHERE student_id = 123110; #43ms

1
2
3
4
5
6
7
8
9
10
11
12
13

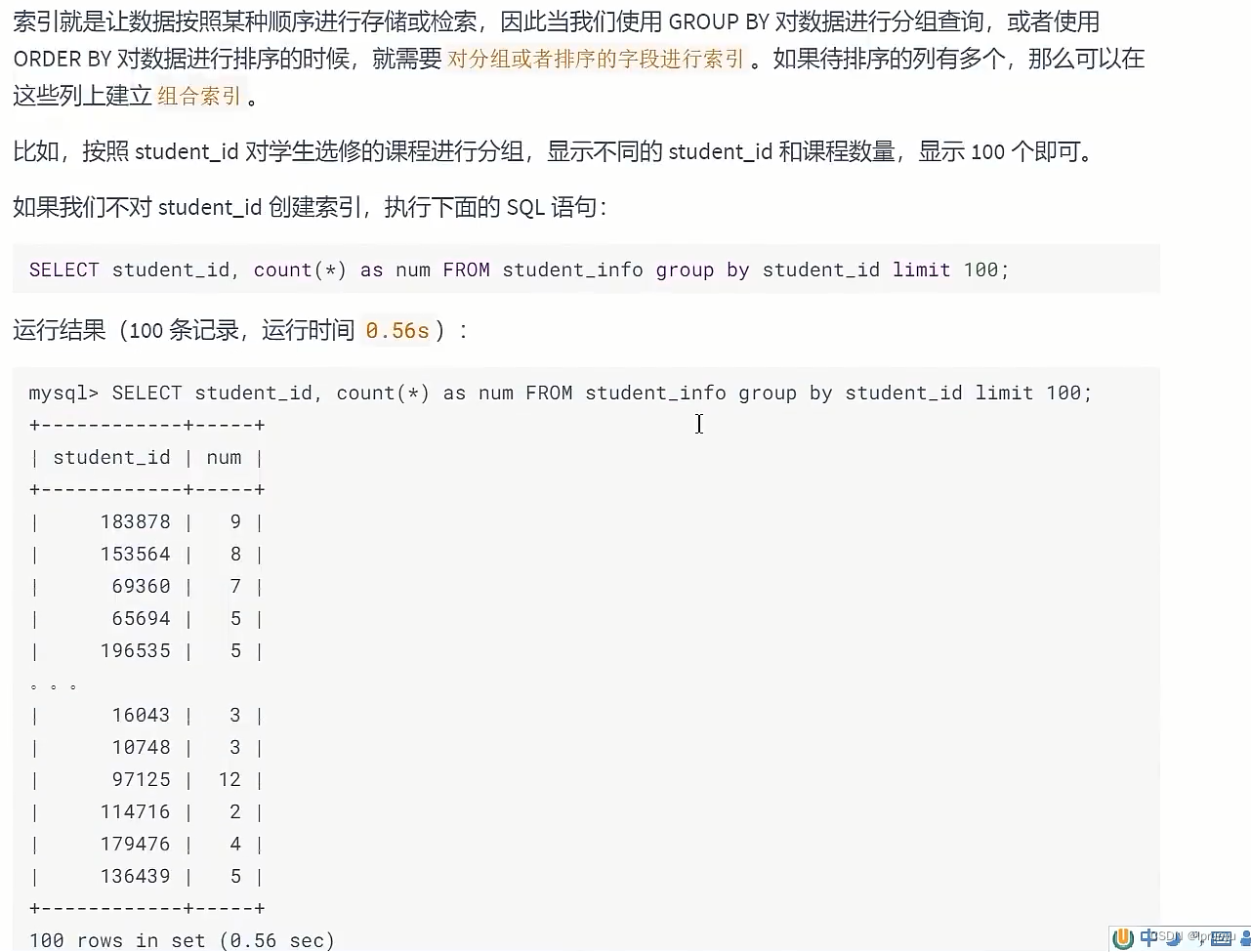

# 经常 GROUP BY 和 ORDER BY 的列

在这里插入图片描述

#student_id字段上有索引的：
SELECT student_id, COUNT(*) AS num
FROM student_info
GROUP BY student_id LIMIT 100; #41ms

#删除idx_sid索引
DROP INDEX idx_sid ON student_info;

SHOW INDEX FROM student_info;

#student_id字段上没有索引的：
SELECT student_id, COUNT(*) AS num
FROM student_info
GROUP BY student_id LIMIT 100; #866ms

1
2
3
4
5
6
7
8
9
10
11
12
13
14

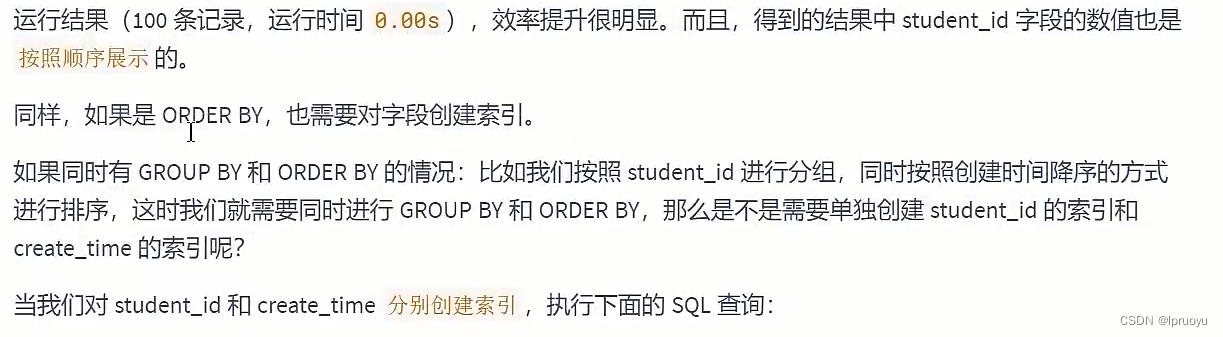

在这里插入图片描述

SHOW INDEX FROM student_info;

#先修改sql_mode

SELECT @@sql_mode;
SET @@sql_mode = 'STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_ENGINE_SUBSTITUTION';

#才能这样子测试

ALTER TABLE student_info
ADD INDEX idx_sid(student_id);

ALTER TABLE student_info
ADD INDEX idx_cre_time(create_time);

#EXPLAIN #发现没有使用到create_time字段的索引【因为group by语句先于order by语句执行】
SELECT student_id, COUNT(*) AS num FROM student_info
GROUP BY student_id
ORDER BY create_time DESC
LIMIT 100;  #5.212s

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

在这里插入图片描述

# 添加联合索引：
ALTER TABLE student_info
ADD INDEX idx_sid_cre_time(student_id,create_time DESC);

#EXPLAIN
SELECT student_id, COUNT(*) AS num FROM student_info
GROUP BY student_id
ORDER BY create_time DESC
LIMIT 100;  #0.257s

1
2
3
4
5
6
7
8
9

在这里插入图片描述

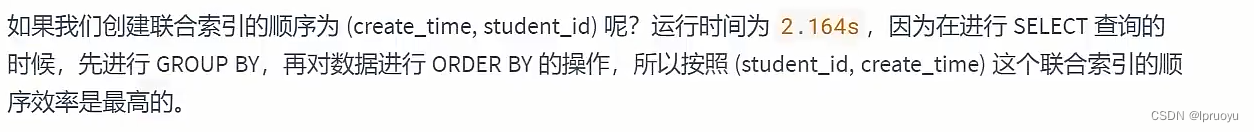

DROP INDEX idx_sid_cre_time ON student_info;

ALTER TABLE student_info
ADD INDEX idx_cre_time_sid(create_time DESC,student_id);

#EXPLAIN #发现使用的还是group by语句的字段（student_id）的索引，并没有使用到idx_cre_time_sid这个联合索引
SELECT student_id, COUNT(*) AS num FROM student_info
GROUP BY student_id
ORDER BY create_time DESC
LIMIT 100;

1
2
3
4
5
6
7
8
9
10

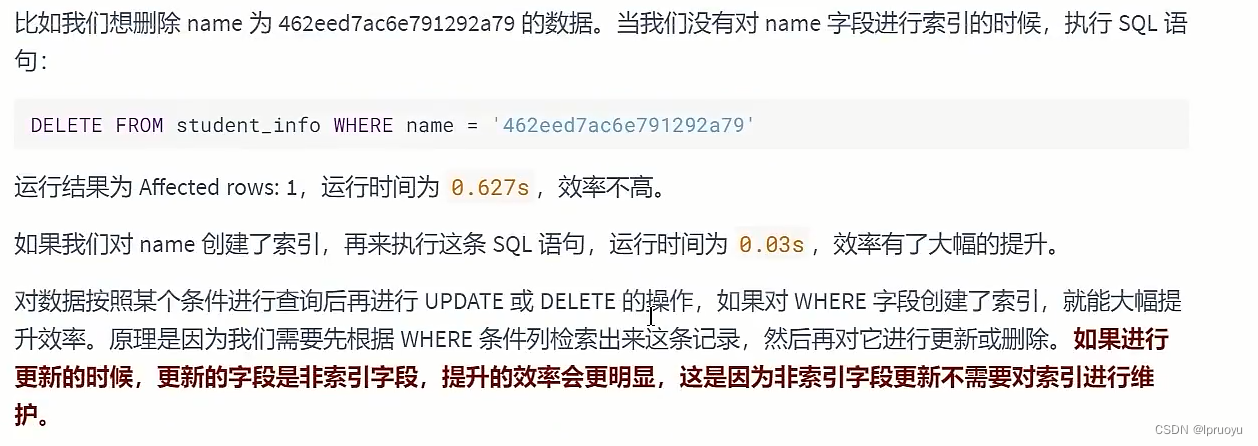

# UPDATE、DELETE 的 WHERE 条件列

在这里插入图片描述

SHOW INDEX FROM student_info;

UPDATE student_info SET student_id = 10002
WHERE NAME = '462eed7ac6e791292a79';  #0.633s

#添加索引
ALTER TABLE student_info
ADD INDEX idx_name(NAME);


UPDATE student_info SET student_id = 10001
WHERE NAME = '462eed7ac6e791292a79'; #0.001s
