1. 什么是Spring Boot Admin

gitHub (opens new window)
springboot 有一个非常好用的监控和管理的源软件,这个软件就是spring boot admin,该软件能够将Actuator中的信息进行图形化的展示,也可以监控 Spring Boot 应用的健康状况,提供实时报警功能.
主要的功能点有

• 显示应用程序的监控状态
• 应用程序上下线监控
• 查看JVM,线程信息
• 可视化的查看日志以及下载日志文件
• 动态切换日志级别
• http请求信息跟踪
• 其他功能点...

2. 服务端

2.1 设置Spring Boot Admin Server

<dependencies>
        <!-- 注册进nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-server</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--监控-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!--整合权限账号 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

    </dependencies>

设置启动类

/**
 * @PROJECT_NAME: 杭州品茗信息技术有限公司
 * @DESCRIPTION:
 * @author: 徐子木
 * @DATE: 2021/1/4 9:24 上午
 */
@EnableAdminServer
@EnableDiscoveryClient
@SpringBootApplication
public class MainBootAdmin {

    public static void main(String[] args) {
        SpringApplication.run(MainBootAdmin.class,args);
    }

}

bootstrap.yml注册到nacos(配置nacos地址,开启actuator全部端点,配置日志打印路径)

spring:
  application:
    name: boot-admin
  cloud:
    nacos:
      discovery:
        server-addr: 192.168.10.37:18848
        namespace: 77613cbe-9303-4d79-983e-8e5aef69cc45
        group: PM_DEV

management:
  endpoints:
    web:
      exposure:
        include: '*'
  endpoint:
    health:
      show-details: always

logging:
  file: /home/java/admin.log


添加配置

  cloud:
    nacos:
      discovery:
        server-addr: 192.168.10.37:18848
        namespace: 77613cbe-9303-4d79-983e-8e5aef69cc45
        group: PM_DEV
        metadata:
          user.name: "admin"
          user.password: "pinming9158"
  security:
    user:
      name: "admin"
      password: "pinming9158"

编写Security的配置

package com.zimu.boot.config;

import de.codecentric.boot.admin.server.config.AdminServerProperties;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;
import org.springframework.security.web.csrf.CookieCsrfTokenRepository;

/**
 * @PROJECT_NAME: 杭州品茗信息技术有限公司
 * @DESCRIPTION:
 * @author: 徐子木
 * @DATE: 2021/1/4 4:26 下午
 */
@Configuration
public class SecuritySecureConfig extends WebSecurityConfigurerAdapter {

    private final String adminContextPath;

    public SecuritySecureConfig(AdminServerProperties adminServerProperties) {
        this.adminContextPath = adminServerProperties.getContextPath();
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        // 登录成功处理类
        SavedRequestAwareAuthenticationSuccessHandler successHandler = new SavedRequestAwareAuthenticationSuccessHandler();
        successHandler.setTargetUrlParameter("redirectTo");
        successHandler.setDefaultTargetUrl(adminContextPath + "/");

        http.authorizeRequests()
                //静态文件允许访问
                .antMatchers(adminContextPath + "/assets/**").permitAll()
                //登录页面允许访问
                .antMatchers(adminContextPath + "/login","/css/**","/js/**","/image/*").permitAll()
                //其他所有请求需要登录
                .anyRequest().authenticated()
                .and()
                //登录页面配置，用于替换security默认页面
                .formLogin().loginPage(adminContextPath + "/login").successHandler(successHandler).and()
                //登出页面配置，用于替换security默认页面
                .logout().logoutUrl(adminContextPath + "/logout").and()
                .httpBasic().and()
                .csrf()
                .csrfTokenRepository(CookieCsrfTokenRepository.withHttpOnlyFalse())
                .ignoringAntMatchers(
                        "/instances",
                        "/actuator/**"
                );

    }


}

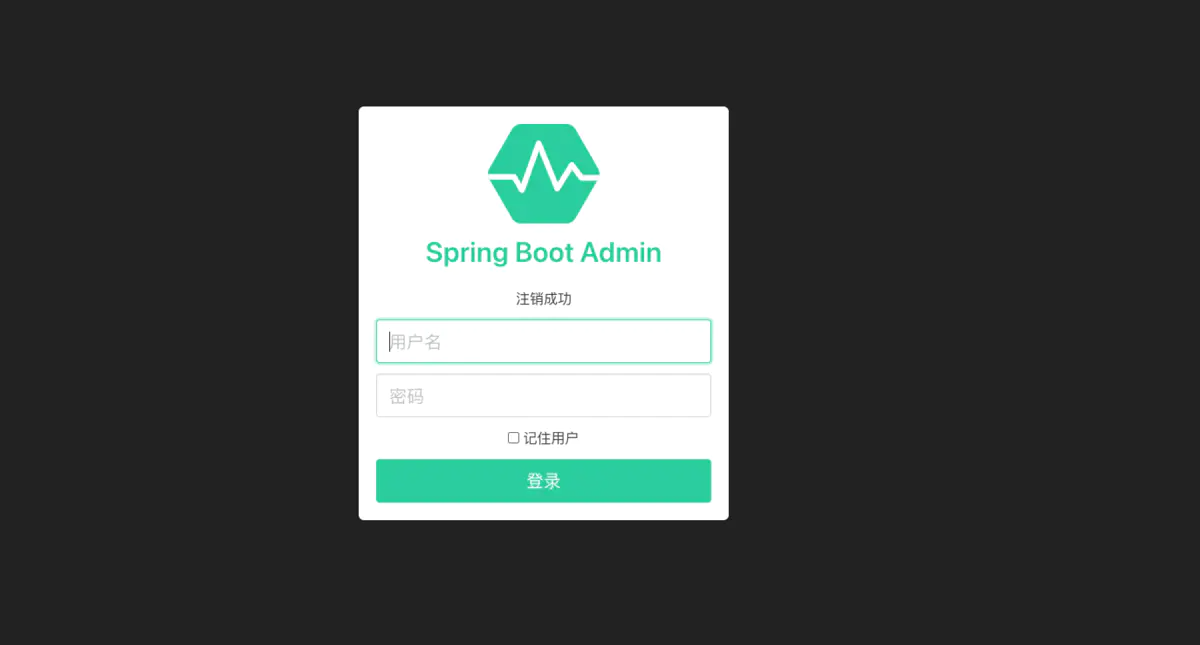

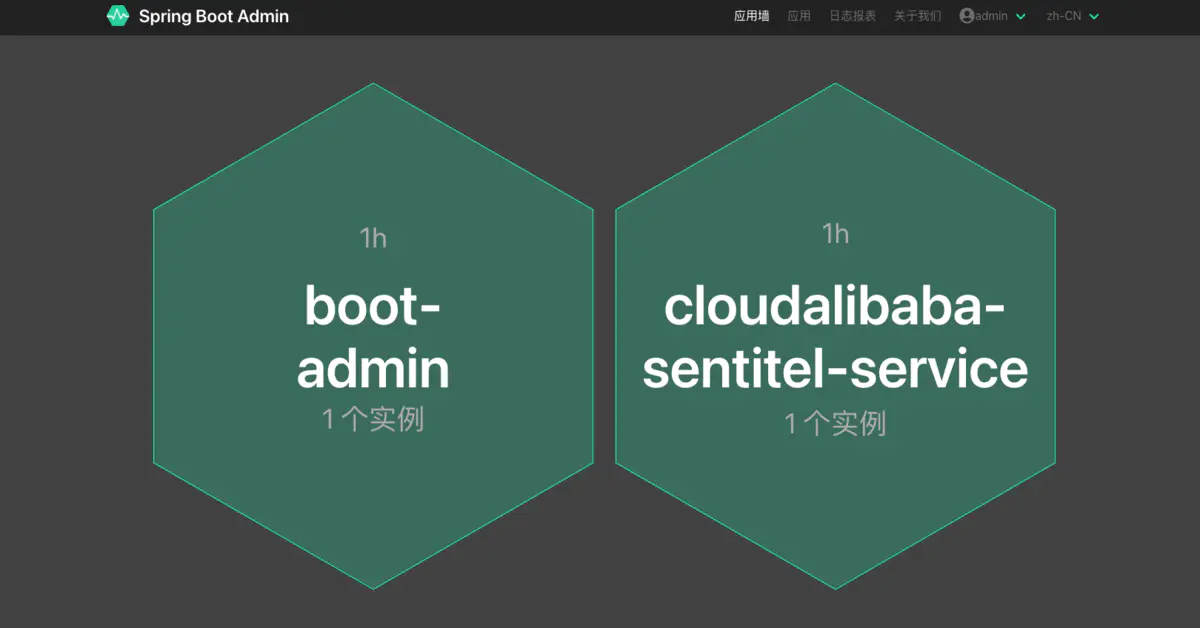

启动项目,即可看到登录页面,输入配置的账号密码登录,能看到注册的服务

2.2 跨域影响

由于Spring Admin Server UI 里有很多js和css,在我们上生产时,大多数选择nginx代理加重定向头的组合,这会是页面加载崩溃,找不到元素,所以我们要配置nginx代理的proxy_set_header 以及服务端跨域处理

location ^~ /control/ {
    proxy_pass http://192.168.10.37:7979;
    proxy_set_header Host $http_host;
    proxy_set_header X-Forwarded-Proto https;
}

package com.zimu.boot.config;

import de.codecentric.boot.admin.server.config.AdminServerProperties;
import org.apache.catalina.valves.RemoteIpValve;
import org.springframework.boot.web.embedded.tomcat.TomcatServletWebServerFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;
import org.springframework.security.web.csrf.CookieCsrfTokenRepository;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;
import org.springframework.web.filter.CorsFilter;
import org.springframework.web.servlet.config.annotation.CorsRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

import java.nio.charset.Charset;
import java.util.ArrayList;
import java.util.List;


/**
 * @PROJECT_NAME: 杭州品茗信息技术有限公司
 * @DESCRIPTION:
 * @author: 徐子木
 * @DATE: 2021/1/4 4:30 下午
 */
@Configuration
public class CorsConfig extends WebMvcConfigurerAdapter {

    @Override
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
                .allowedOrigins("*")
                .allowCredentials(true)
                .allowedMethods("GET", "POST", "DELETE", "PUT", "OPTIONS")
                .allowedHeaders("origin", "content-type", "accept", "x-requested-with")
                .maxAge(3600);
    }

    private CorsConfiguration buildConfig() {
        CorsConfiguration corsConfiguration = new CorsConfiguration();
        List<String> list = new ArrayList<>();
        list.add("*");
        corsConfiguration.setAllowedOrigins(list);

        corsConfiguration.addAllowedOrigin("*");
        corsConfiguration.addAllowedHeader("*");
        corsConfiguration.addAllowedMethod("*");

        return corsConfiguration;
    }

    @Bean
    public CorsFilter corsFilter() {
        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        source.registerCorsConfiguration("/**", buildConfig());
        return new CorsFilter(source);
    }

    @Bean
    public TomcatServletWebServerFactory servletContainer(){
        TomcatServletWebServerFactory  factory = new TomcatServletWebServerFactory ();
        factory.setUriEncoding(Charset.forName("UTF-8"));
        RemoteIpValve value = new RemoteIpValve();
        value.setRemoteIpHeader("X-Forwarded-For");
        value.setProtocolHeader("X-Forwarded-Proto");
        value.setProtocolHeaderHttpsValue("https");
        factory.addEngineValves(value);
        return factory;
    }


}

2.3 报警邮件

在我们服务宕机或上线时可以自动触发邮件发送,需要提前开启邮件的imtp和smtp功能,请自行了解

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-mail</artifactId>
        </dependency>

  boot:
    admin:
      context-path: "control"
      notify:
        mail:
          to: [email protected] # 发送给
          from: [email protected] #发送者
  mail:
    default-encoding: UTF-8
    host:   #邮件服务器
    username:    ##用户名
    password:  #密码
    properties:
      mail:
        debug: false
        smtp:
          port: 465
          auth: true
          ssl:
            enable: true
            socket-factory: sf

3. 客户端注册

       <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-client</artifactId>
            <version>2.3.0</version>
        </dependency>

        <!--监控-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

启动类
client端相对简单,因为nacos自动帮我们整合了与admin的关联工作,只需要注册进nacos,并且与服务端保持在同一命名空间和分组下即可
bootstrap.yml

  cloud:
    nacos:
      discovery:
        server-addr: 192.168.10.37:18848
        namespace: 77613cbe-9303-4d79-983e-8e5aef69cc45
        group: PM_DEV
        metadata:
          management:

management:
  health:
    redis:
      enabled: false
    sentinel:
      enabled: false
    ldap:
      enabled: false
  endpoints:
    web:
      exposure:
        include: "*"
  endpoint:
    health:
      show-details: always

logging:
  file:
